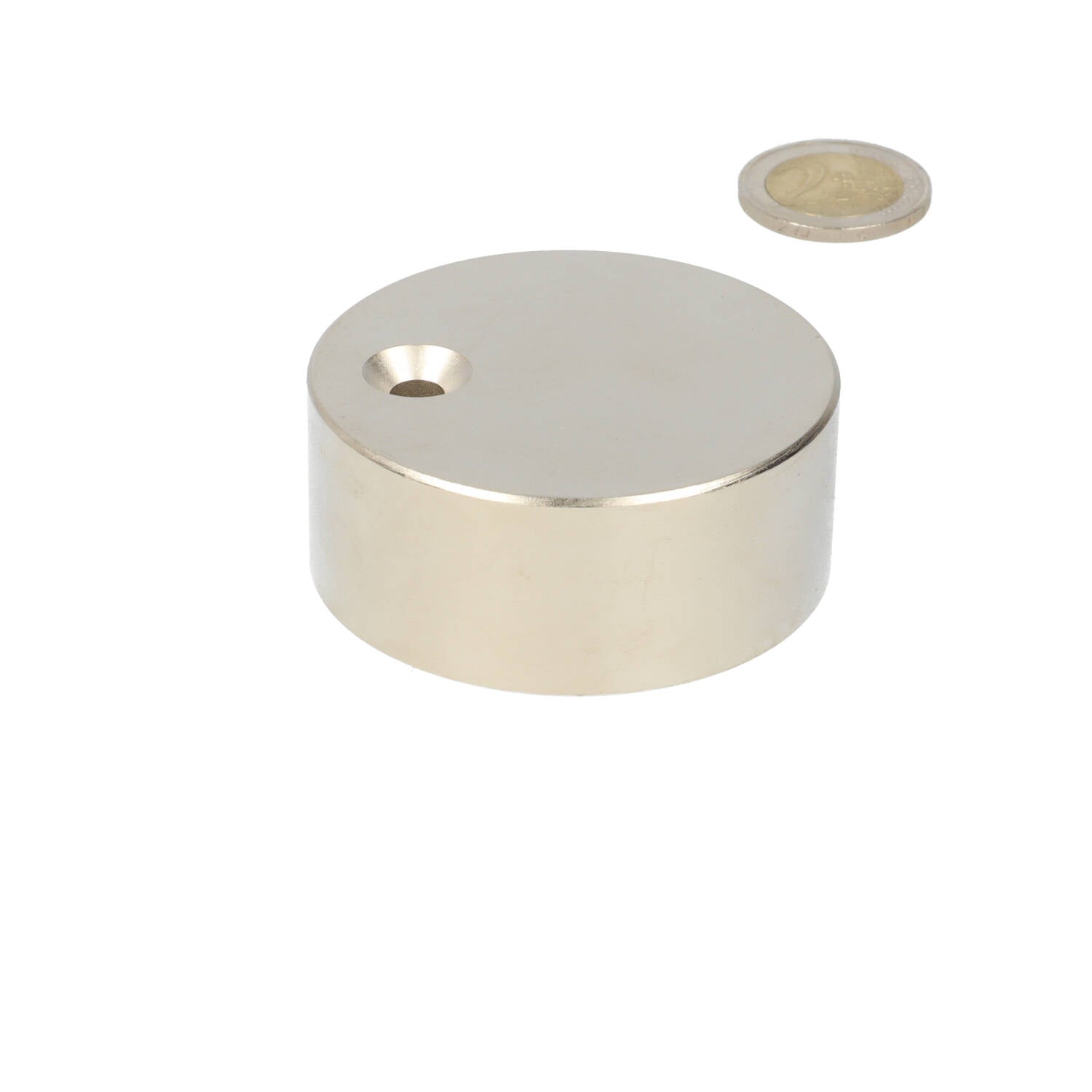

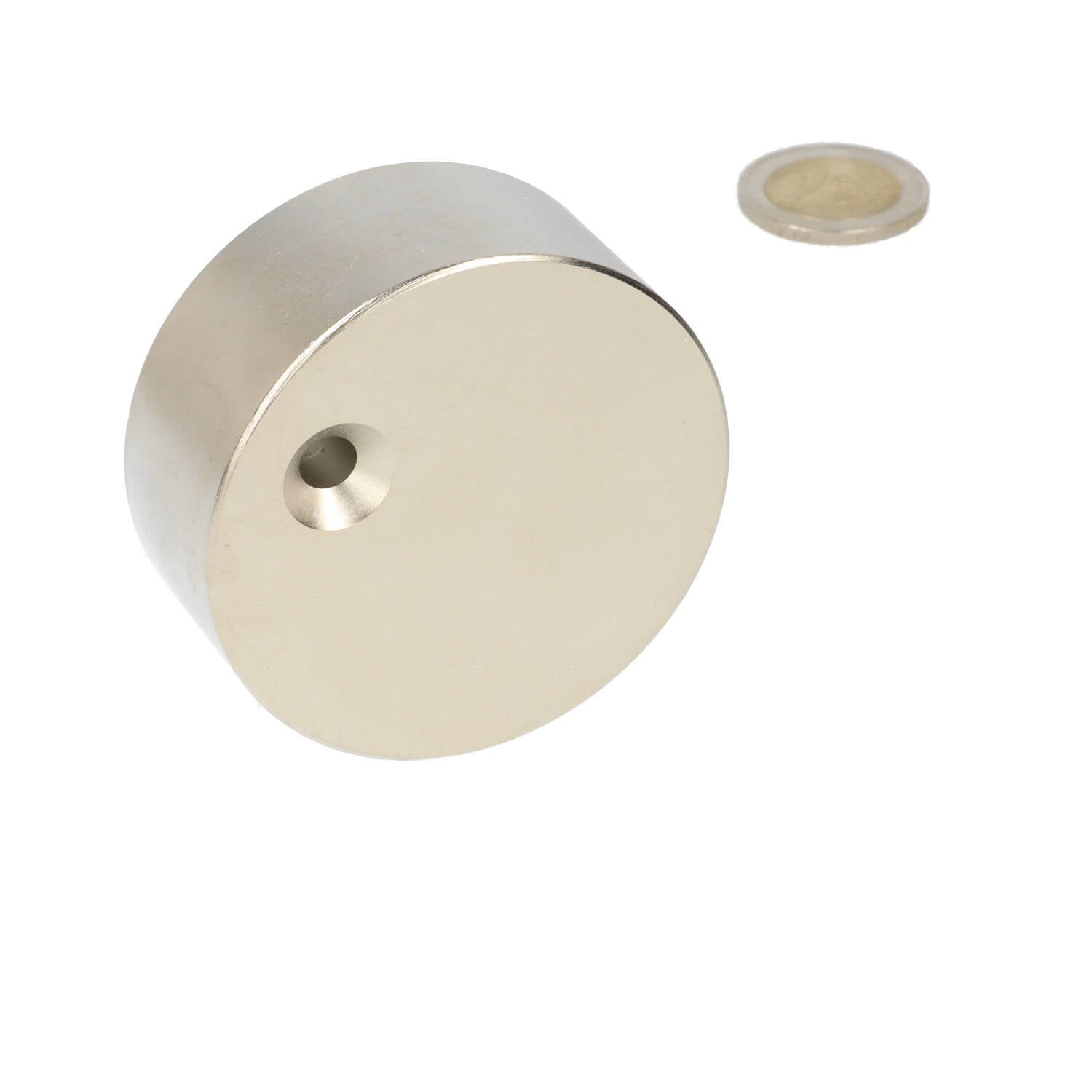

Neodymium Disc Magnet Ø60 x 25 mm N48 NiCuNi with countersunk bore hole

Neodymium disc magnet Ø60 x 25 mm with countersunk hole, grade N48 with NiCuNi coating. Holding power approx. 91 kg.

Specifications

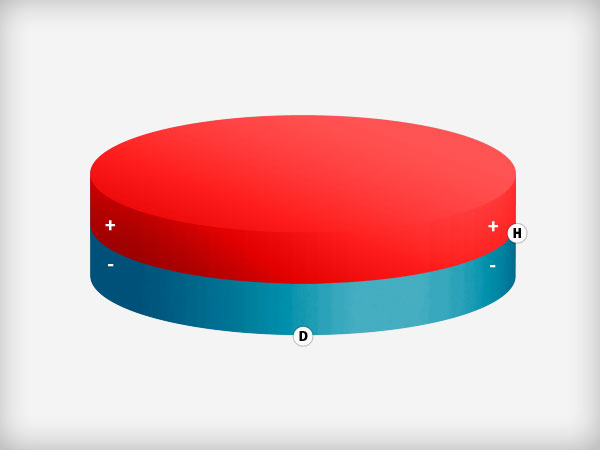

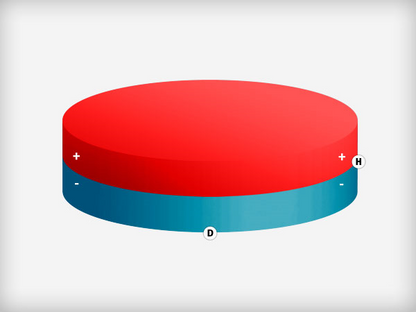

• Dimensions: Ø 60 mm x 25 mm
• Type: with countersunk hole
• Grade: N48 (neodymium)
• Coating: NiCuNi (nickel-copper-nickel)
• Holding power: approx. 91 kg
• Maximum temperature: 80 °C

What do you use this magnet for?

The countersunk hole allows you to screw this magnet into place, for example in mechanical engineering, on workbenches, in workshop or warehouse setups, and for heavy panels and fixtures. Check that the surface and the screw can handle the load. With this level of holding power, magnets can snap together or against metal with force: work carefully and slide the magnet off a steel surface instead of pulling it off. Which disc magnet should you choose?

The holding power is measured under ideal conditions on a flat steel plate; in practice, the actual holding power is lower. Read how holding power is determined.

Delivery and returns

Orders placed and paid for on workdays before 16:00 will be shipped the same workday if in stock. Free shipping within the Netherlands for orders over €45. Consumers have a 30-day reflection period.

Safe use

Magnets are not toys and should be kept out of the reach of children. Keep strong magnets away from pacemakers, electronics, and bank cards. Powerful magnets can snap together or against metal with force; keep your fingers away.
