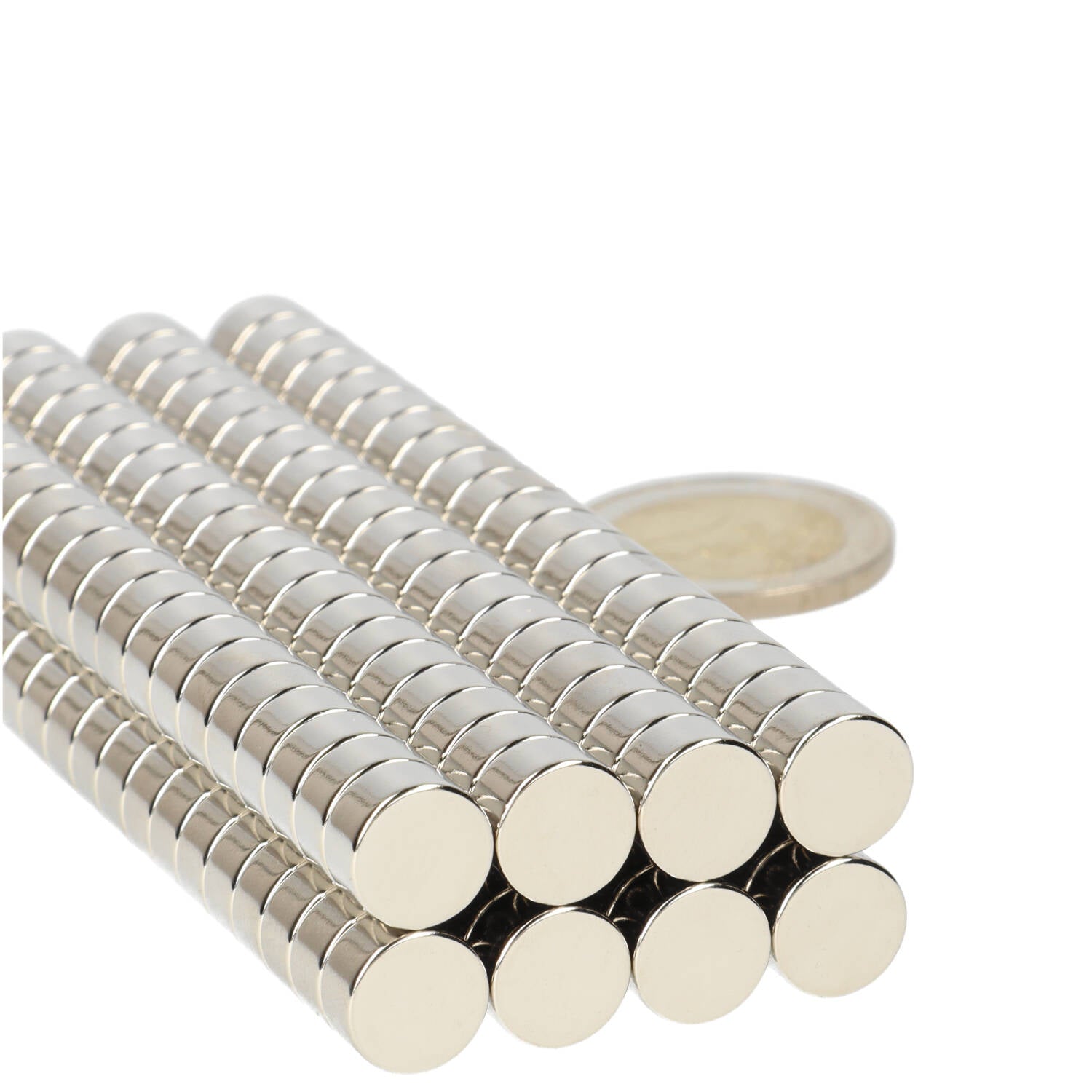

Neodymium Disc Magnet Ø10 x 6 mm N45 NiCuNi

Neodymium disc magnet Ø10 x 6 mm, grade N45 with NiCuNi coating. Holding force approx. 3.4 kg.

Specifications

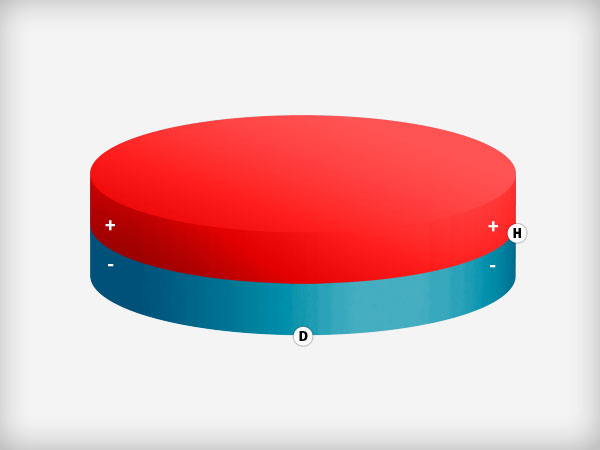

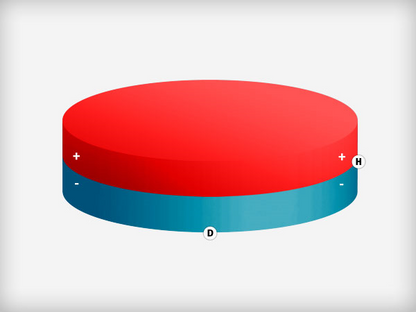

• Dimensions: Ø 10 mm x 6 mm
• Grade: N45 (neodymium)
• Coating: NiCuNi (nickel-copper-nickel)
• Holding force: approx. 3.4 kg
• Maximum temperature: 80 °C

What do you use this magnet for?

Suitable for small fasteners and detachable parts: hatches and small cabinet doors, displays, model making, and closures for boxes. Only use in jewelry if concealed and not against the skin: the NiCuNi layer contains nickel. Too small for heavy doors or panels; use multiple magnets or a larger size for those applications. Which disc magnet should you choose?

Handy for many magnets: with the magnet dispenser for 6 mm height and Ø10 mm, you can remove disc magnets one by one from the stack without getting your fingers caught between them.

The holding force is measured under ideal conditions on a flat steel plate; in practice, the actual holding force is lower. Read how holding force is determined.

Delivery and returns

Orders placed and paid for before 4:00 PM on working days are shipped the same day if in stock. Free shipping within the Netherlands on orders over €45. Consumers have a 30-day cooling-off period.

Safe use

Magnets are not toys and should be kept out of reach of children. Keep strong magnets away from pacemakers, electronics, and bank cards.
