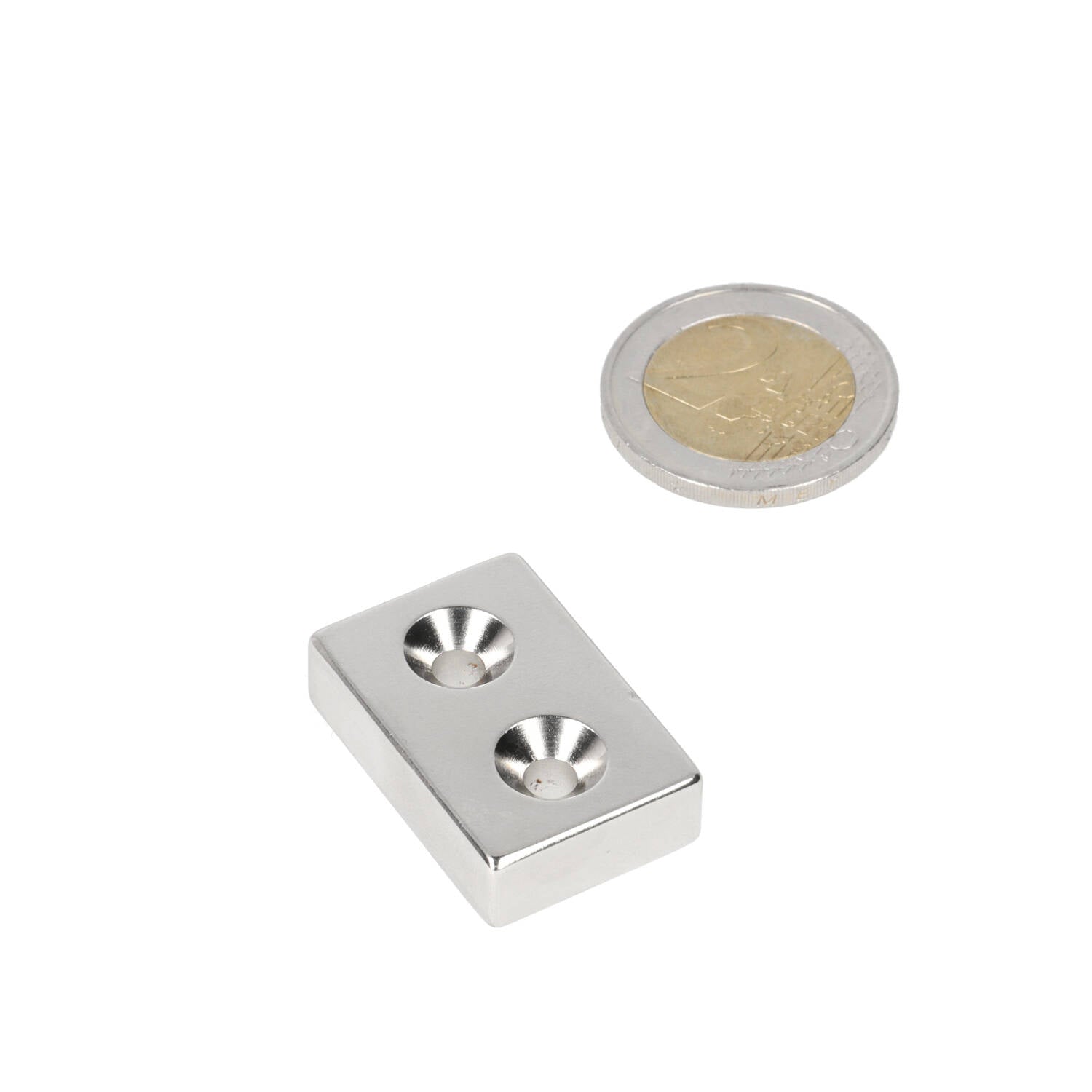

Neodymium Block Magnet with 2x Countersunk Holes 30 x 20 x 8 mm N48 NiCuNi South Pole

Neodymium block magnet 30 x 20 x 8 mm, grade N48 with NiCuNi coating. Holding force approx. 12 kg.

Specifications

• Dimensions: 30 x 20 x 8 mm (length x width x height)
• Grade: N48 (neodymium)
• Coating: NiCuNi (nickel-copper-nickel)
• Magnetization: axial
• Mounting: 2 countersunk holes
• Pole on countersunk side: south pole
• Holding force: approx. 12 kg
• Maximum temperature: 80 °C

What do you use this magnet for?

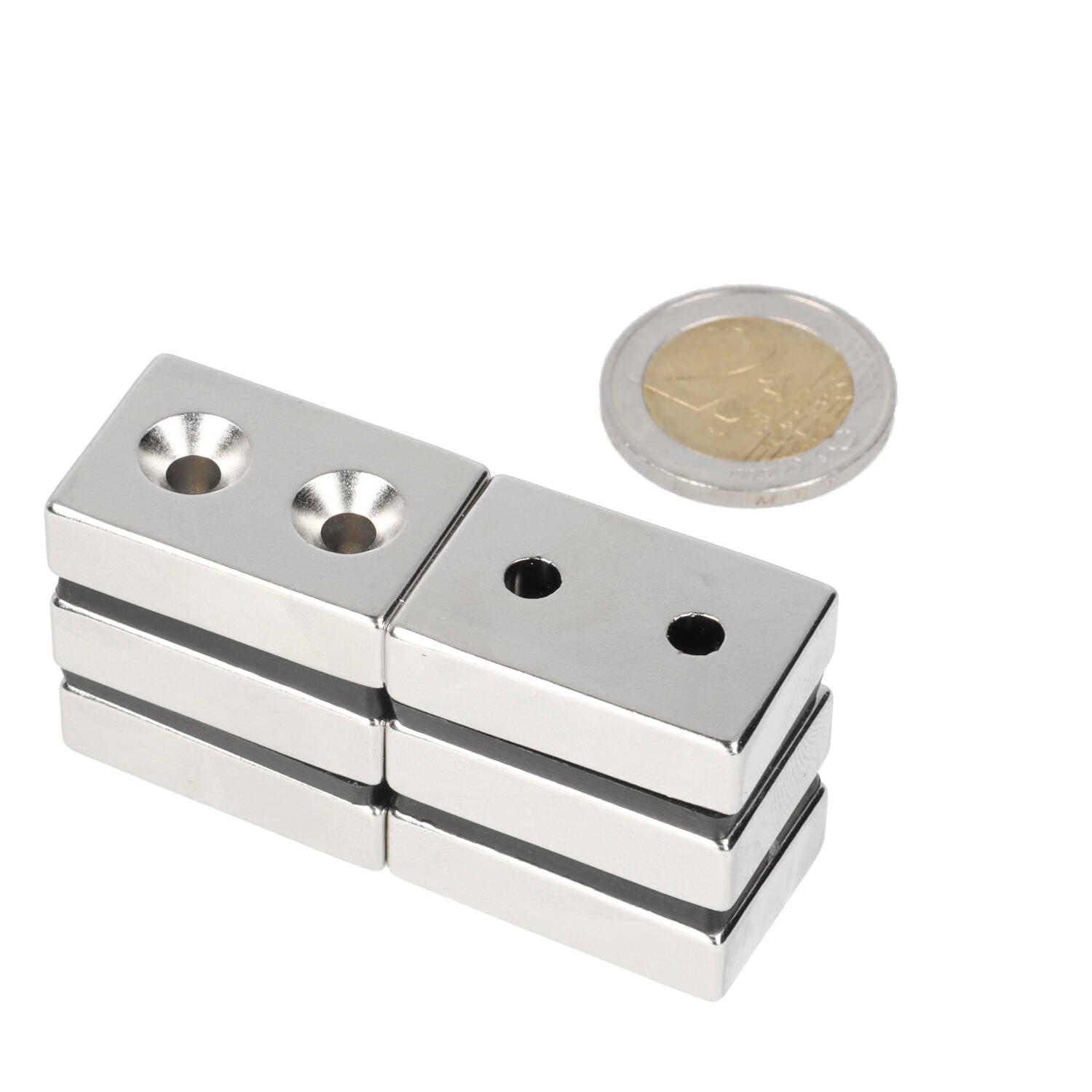

Powerful: suitable for workshop and assembly, holding tools, jigs and fixtures, and heavier doors, panels, and displays. The rectangular shape provides a flat contact surface, useful for installation in slots and against flat surfaces. The two countersunk holes allow for mounting with countersunk screws. This version has the south pole on the countersunk side. If you want two magnets to attract each other, combine a north pole version with a south pole version; two identical versions will repel each other. For securing heavy parts: distribute multiple magnets over the surface. Also suitable for steel doors: read Epoxy-coated magnets in steel doors. Which block magnet should you choose?

The holding force is measured under ideal conditions on a flat steel plate; in practice, the actual holding force will be lower. Read how holding force is determined.

Delivery and returns

Orders placed and paid for on business days before 4:00 PM will be shipped the same business day if in stock. Free shipping within the Netherlands on orders over €45. Consumers have a 30-day reflection period.

Safe use

Magnets are not toys and should be kept out of reach of children. Keep strong magnets away from pacemakers, electronics, and bank cards. Powerful magnets can snap together or against metal with force; keep your fingers away.
