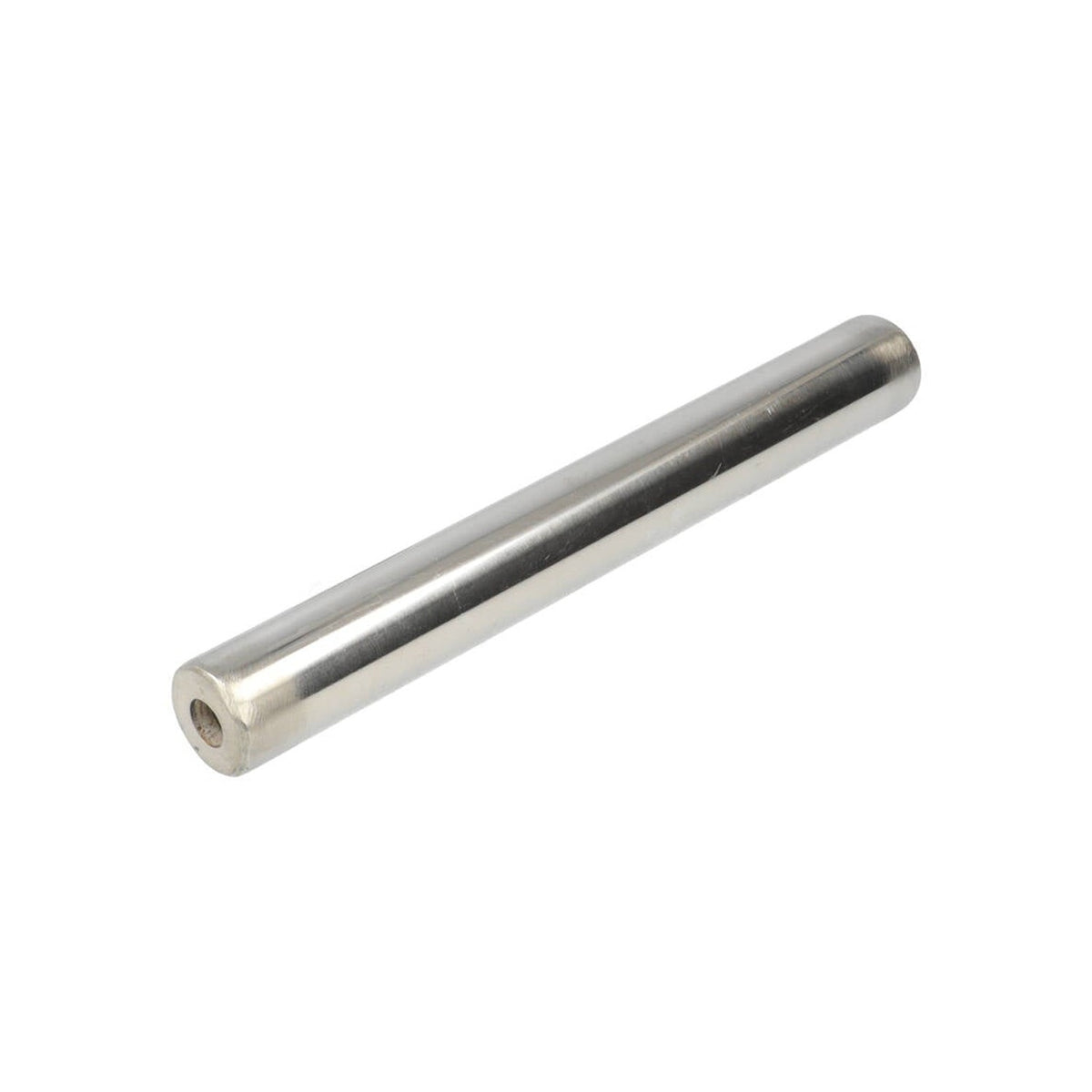

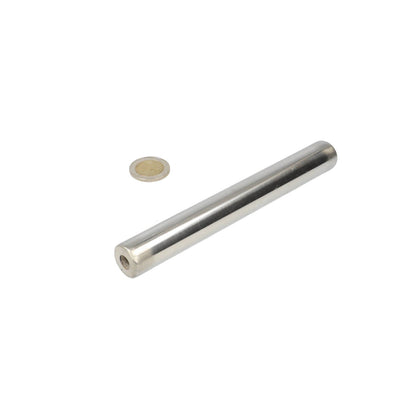

Neodymium Filter Magnet Stainless Steel Ø20 x 160 mm N42 diametrical 2× internal thread M8

Neodymium filter magnet Ø20 x 160 mm, grade N42, in a stainless steel housing, with M8 internal thread at both ends. Diametrically magnetized.

Specifications

• Dimensions: Ø20 x 160 mm (diameter x length)
• Grade: N42 (neodymium)
• Design: Stainless steel housing, magnet with NiCuNi coating
• Magnetization: diametrical
• Mounting: 2× M8 internal thread (at both ends)
• Magnetic field: 14,000 Gauss
• Maximum temperature: 80 °C

What do you use this magnet for?

A filter magnet removes ferrous particles from a product or liquid stream, for example in a funnel, chute, or tank. You attach it to a threaded rod or bolt using the M8 internal thread, allowing you to suspend it in the flow and clean it after use. With diametrical magnetization, the poles are on the sides of the rod, which causes particles to be held along the length of the magnet. A longer magnet covers more of the stream. Which filter magnet should you choose?

Delivery and returns

Orders placed and paid for on working days before 4:00 PM will be shipped the same working day if in stock. Free shipping within the Netherlands on orders over €45. Consumers have a 30-day reflection period.

Safe use

Magnets are not toys and should be kept out of reach of children. Keep strong magnets away from pacemakers, electronics, and bank cards. Powerful magnets can slam hard against each other or against metal; keep your fingers away. Only remove held particles once you can safely hold the magnet or have removed it from the stream.
