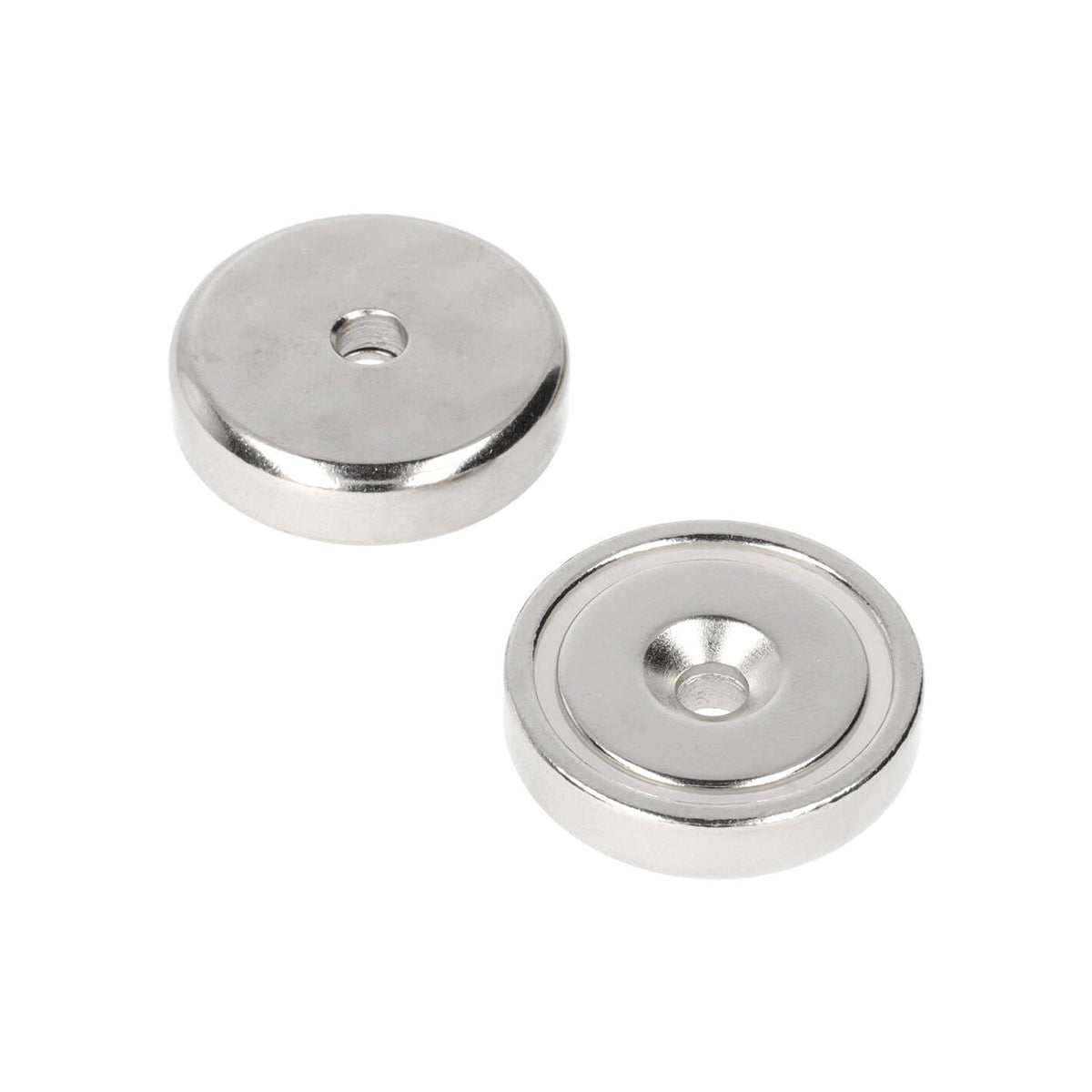

Neodymium Pot Magnet Ø32 x 8 mm N40 with Bore/Countersunk Hole

Neodymium pot magnet Ø32 x 8 mm, grade N40, steel pot with NiCuNi coating, with countersunk hole. Holding power approx. 21 kg.

Specifications

• Dimensions: Ø32 x 8 mm (diameter x height)
• Grade: N40 (neodymium)
• Design: steel pot, NiCuNi coating
• Mounting: countersunk hole
• Holding power: approx. 21 kg
• Maximum temperature: 80 °C

What do you use this magnet for?

Powerful: suitable for workshops and assembly, molds and fixtures, signs and heavier objects. The steel pot concentrates the magnetic force on the flat side, which gives a pot magnet much more holding power on steel than the same magnet without a pot. With the countersunk hole, you can screw the magnet flush into wood, plastic, or metal. Do not overtighten the screw: the magnetic material is brittle. Which pot magnet should you choose?

The holding power was measured under ideal conditions on a flat steel plate; in practice, the actual holding power is lower. Read how holding power is determined.

Delivery and returns

Orders placed and paid for before 16:00 on business days are shipped the same day if in stock. Free shipping within the Netherlands on orders over €45. Consumers have a 30-day reflection period.

Safe use

Magnets are not toys and should be kept out of the reach of children. Keep strong magnets away from pacemakers, electronics, and bank cards. Powerful magnets can slam hard against each other or against metal; keep your fingers away. The holding power is not the permitted working load: do not use magnets as the sole attachment for lifting or hanging heavy loads where a fall could cause injury.
