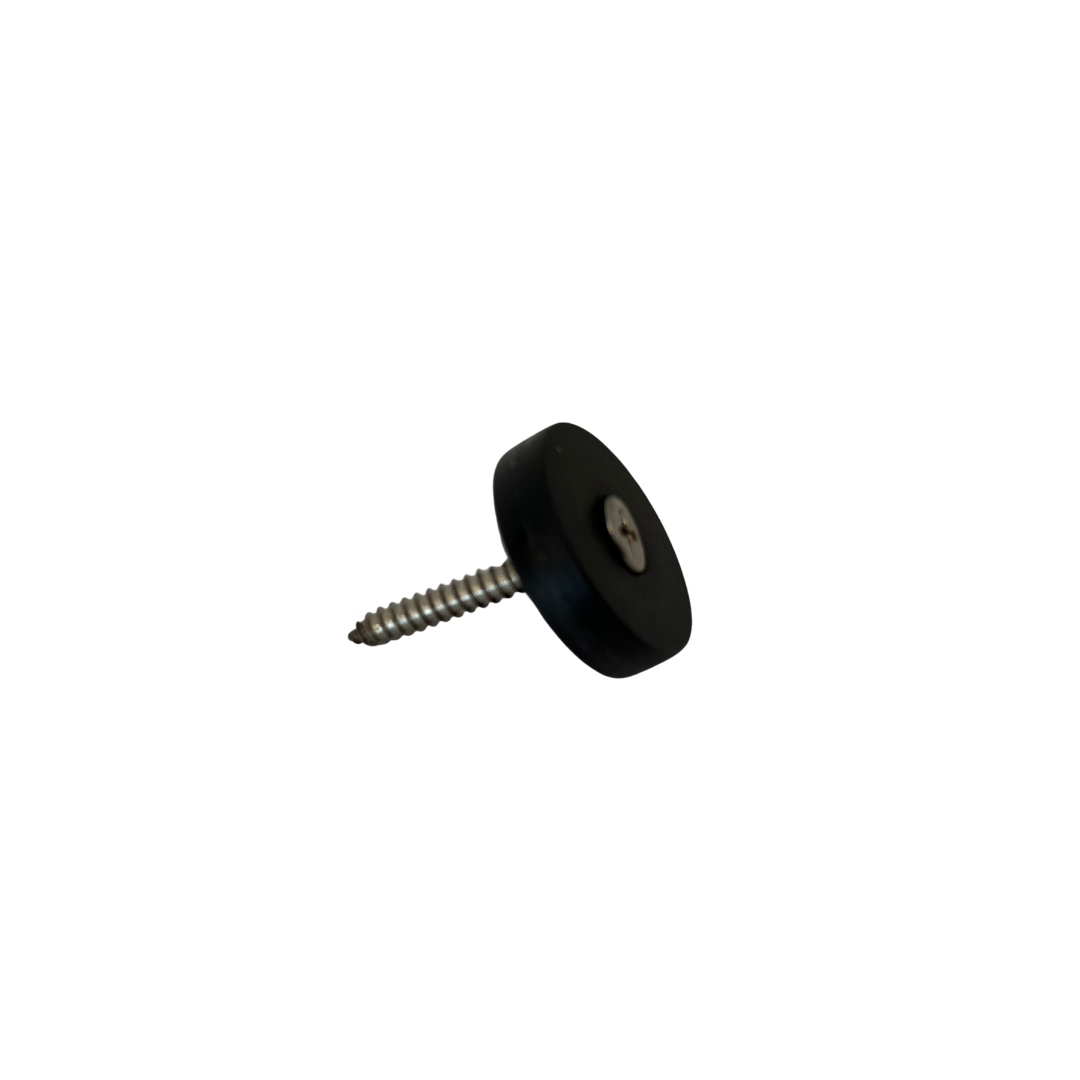

Neodymium Ring Magnet Ø25.4 x Ø8.1 x 6.35 mm plastic coated with countersunk hole

Neodymium ring magnet Ø25.4 x Ø8.1 x 6.35 mm, grade N40, countersunk hole and plastic protective coating. Holding power approx. 5.5 kg.

Specifications

• Dimensions: Ø25.4 x Ø8.1 x 6.35 mm (outer diameter x hole/countersink diameter x height)
• Grade: N40 (neodymium)
• Finish: plastic protective coating
• Fastening: countersunk hole of Ø8.1 mm, tapering to Ø4.1 mm. Suitable for a 4 mm screw with a flat countersunk head (metric screw, chipboard screw or sheet metal screw).
• Magnetization: axial (poles on the flat sides)
• Holding power: approx. 5.5 kg
• Maximum temperature: 80 °C

What do you use this magnet for?

With the countersunk hole you can screw the magnet flush onto wood, plastic or metal, for example for cabinet doors, displays, signs and closures. The plastic protective coating prevents scratches and damage. Do not overtighten the screw. Which ring magnet should you choose?

The holding power is measured under ideal conditions on a flat steel plate; in practice, the actual holding power is lower. Read how holding power is determined.

Delivery and returns

Orders placed and paid for before 16:00 on business days are shipped the same day if in stock. Free shipping within the Netherlands on orders over €45. Consumers have a 30-day reflection period.

Safe use

Magnets are not toys and should be kept out of reach of children. Keep strong magnets away from pacemakers, electronics and bank cards.
