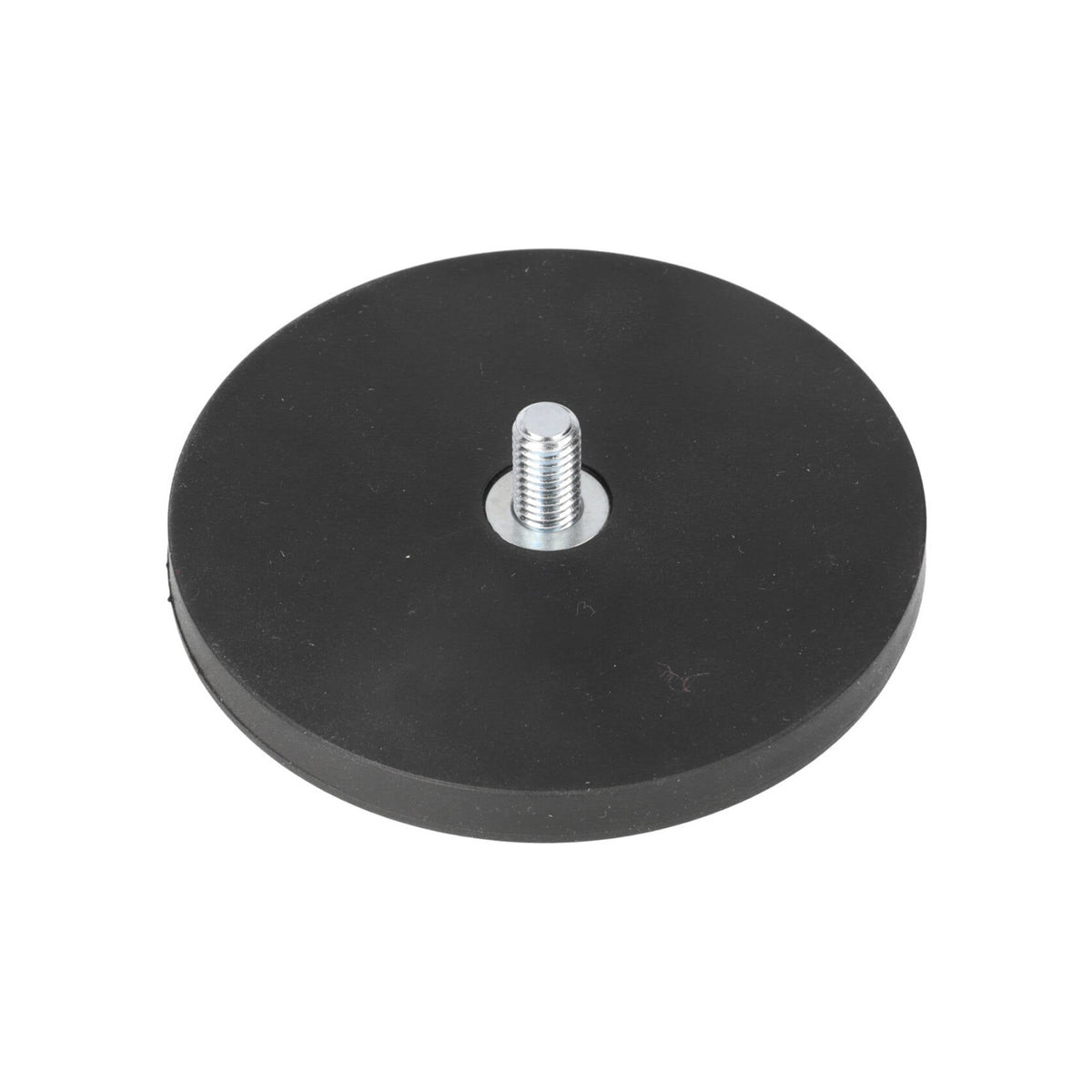

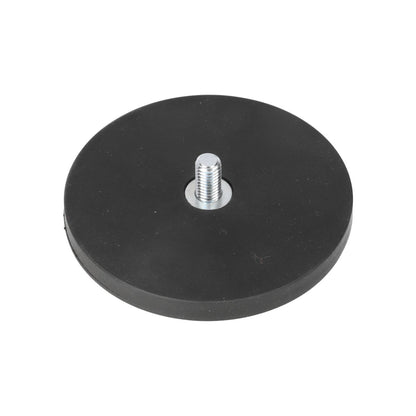

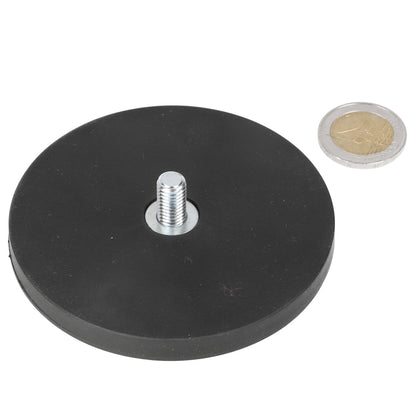

Neodymium Rubber Coated Pot Magnet Ø88 x 8.5 mm N40 threaded stud M8

Neodymium rubber-coated pot magnet Ø88 x 8.5 mm, grade N40, steel pot with rubber coating, with M8 threaded stud. Holding force approx. 55 kg.

Specifications

• Dimensions: Ø88 x 8.5 mm (diameter x height)
• Grade: N40 (neodymium)
• Execution: steel pot with rubber coating
• Attachment: M8 threaded stud
• Holding force: approx. 55 kg
• Maximum temperature: 80 °C

What do you use this magnet for?

Very powerful: suitable for professional assembly, mechanical engineering, clamping, and heavy objects. The steel pot concentrates the magnetic force on the flat front side, giving a pot magnet on steel much higher holding force than the same magnet without a pot. The rubber coating protects the surface the magnet is attached to and provides grip, preventing it from sliding. The threaded stud protrudes from the pot; you screw it into a threaded hole or secure it with a nut. Which pot magnet should you choose?

The holding force is measured under ideal conditions on a flat steel plate; in practice, the actual holding force will be lower. Read how holding force is determined.

Delivery and returns

Orders placed and paid for on business days before 16:00 will be shipped the same day if in stock. Free shipping within the Netherlands from €45. Consumers have a 30-day reflection period.

Safe use

Magnets are not toys and should be kept out of reach of children. Keep strong magnets away from pacemakers, electronics, and bank cards. Powerful magnets can snap together or against metal with great force; keep your fingers away. The holding force is not a safe working load: do not use magnets as the sole means of attachment for lifting or hanging heavy loads where a fall could cause injury.
