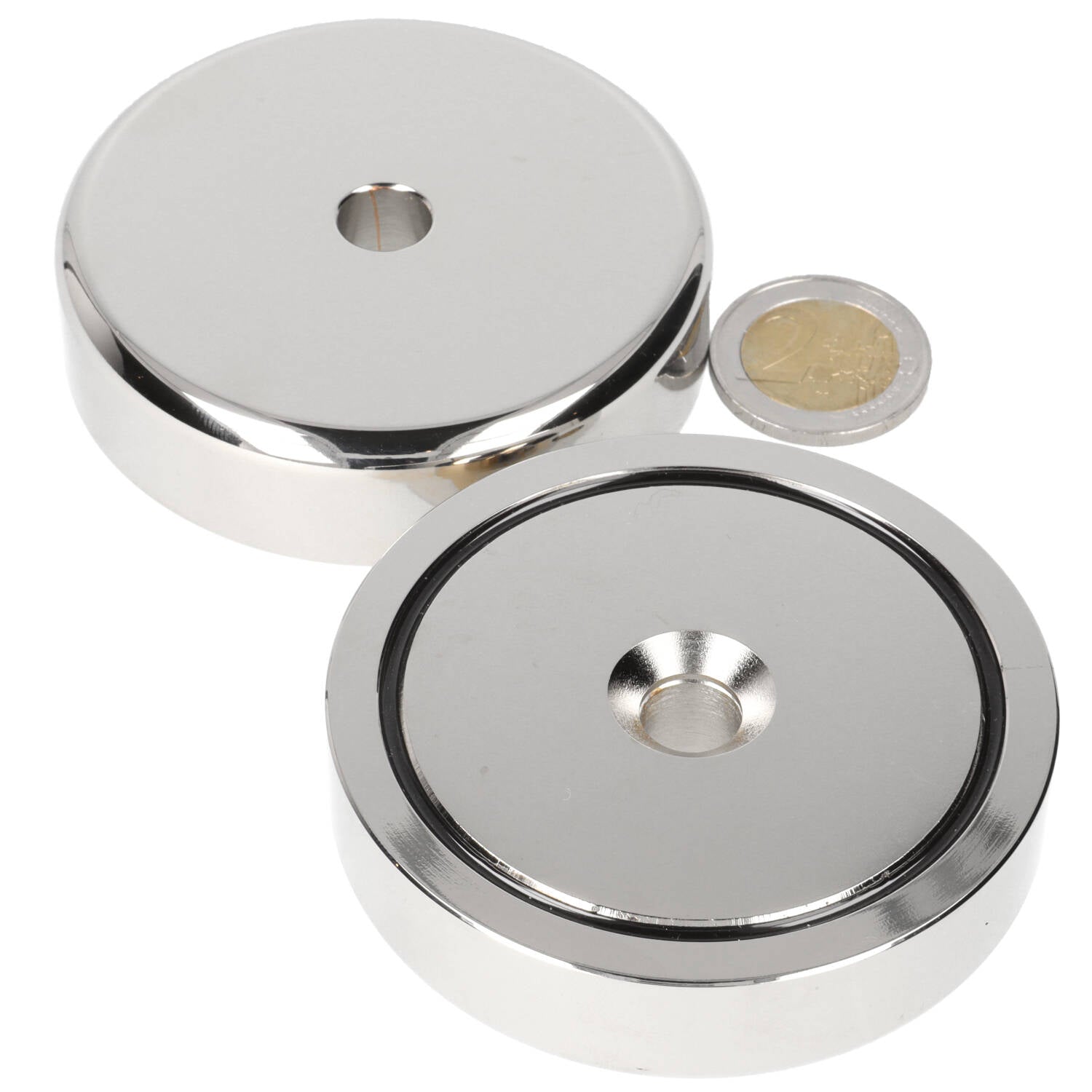

Neodymium Pot Magnet Ø75 x 18 mm N40 NiCuNi bore/countersunk hole

Neodymium pot magnet Ø75 x 18 mm, grade N40, steel pot with NiCuNi coating, with countersunk hole. Holding force approx. 107 kg.

Specifications

• Dimensions: Ø75 x 18 mm (diameter x height)
• Grade: N40 (neodymium)
• Design: steel pot, NiCuNi coating
• Mounting: countersunk hole
• Holding force: approx. 107 kg
• Maximum temperature: 80 °C

What do you use this magnet for?

Very powerful: suitable for professional assembly, mechanical engineering, clamping, and heavy objects. The steel pot concentrates the magnetic force onto the flat side, giving a pot magnet much higher holding force on steel than the same magnet without a pot. With the countersunk hole, you can screw the magnet flush into wood, plastic, or metal. Do not overtighten the screw: the magnetic material is brittle. Which pot magnet should you choose?

The holding force is measured under ideal conditions on a flat steel plate; in practice, the actual holding force is lower. Read how holding force is determined.

Delivery and returns

Orders placed and paid for before 16:00 on business days are shipped the same day if in stock. Free shipping within the Netherlands on orders over €45. Consumers have a 30-day reflection period.

Safe use

Magnets are not toys and should be kept out of reach of children. Keep strong magnets away from pacemakers, electronics, and bank cards. Powerful magnets can snap together or against metal with force; keep your fingers away. The holding force is not a safe working load: do not use magnets as the sole attachment for lifting or hanging heavy loads where a fall could cause injury.
