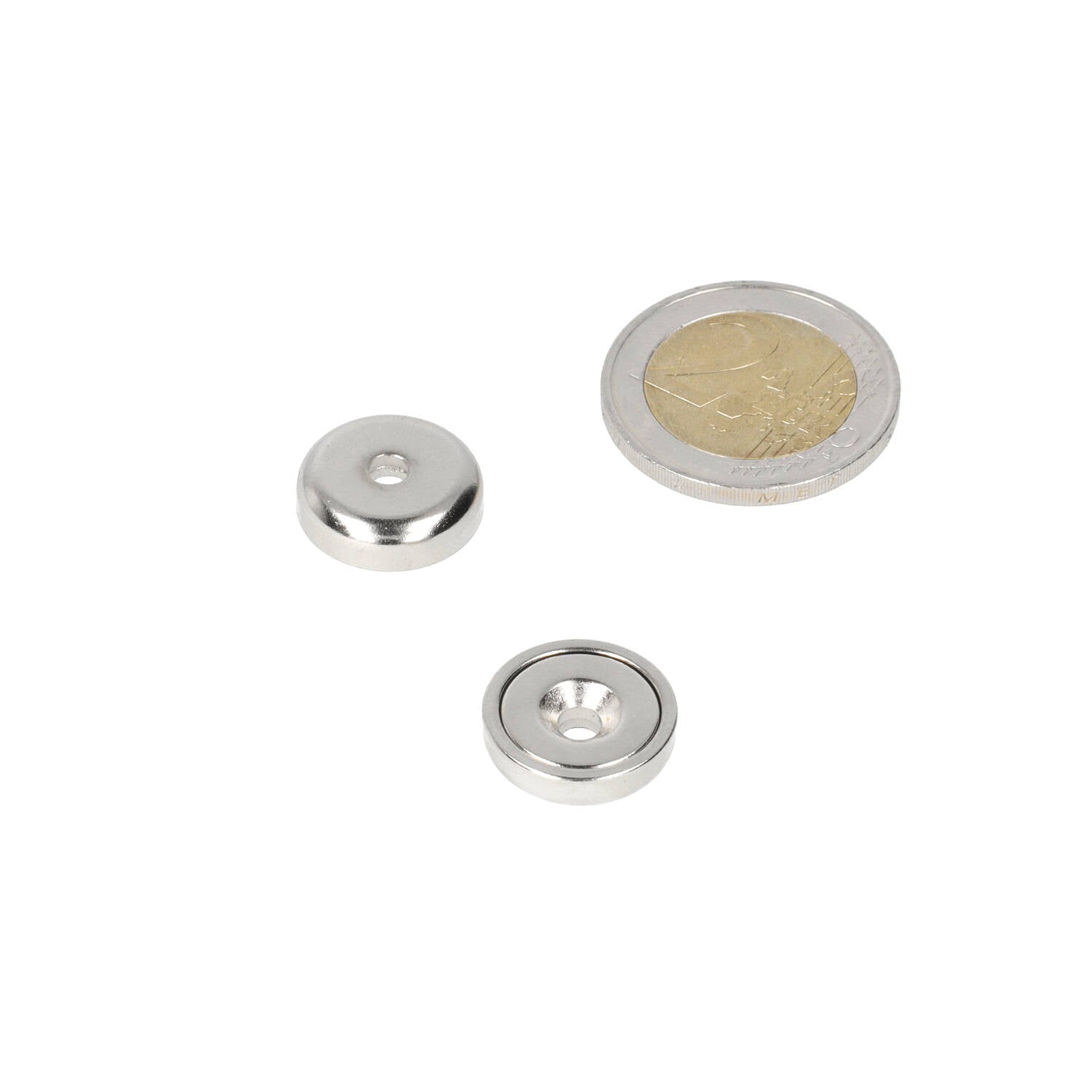

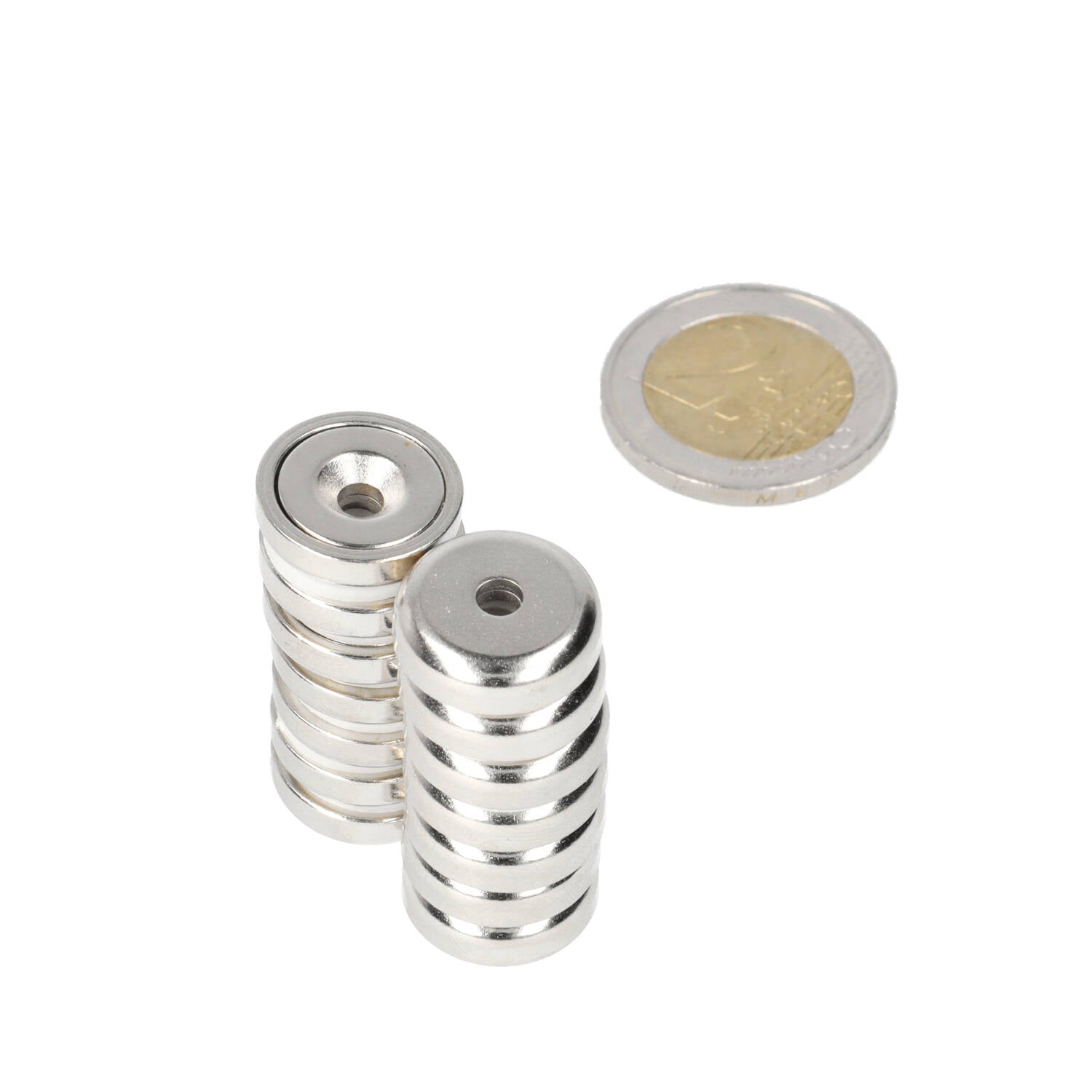

Neodymium Pot Magnet Ø16 x 5 mm N40 NiCuNi drilled/countersunk hole

Neodymium pot magnet Ø16 x 5 mm, grade N40, steel pot with NiCuNi coating, with countersunk hole. Holding force approx. 7.3 kg.

Specifications

• Dimensions: Ø16 x 5 mm (diameter x height)
• Grade: N40 (neodymium)
• Design: steel pot, NiCuNi coating
• Mounting: countersunk hole
• Holding force: approx. 7.3 kg
• Maximum temperature: 80 °C

What do you use this magnet for?

Suitable for hanging light objects, displays, lighting, signs, and fixtures in workshops and interior construction. The steel pot concentrates the magnetic force onto the flat front side, giving a pot magnet much more holding force on steel than the same magnet without a pot. With the countersunk hole, you can screw the magnet flush onto wood, plastic, or metal. Do not overtighten the screw: the magnetic material is brittle. Which pot magnet should you choose?

The holding force is measured under ideal conditions on a flat steel plate; in practice, the actual holding force will be lower. Read how holding force is determined.

Delivery and returns

Ordered and paid for on working days before 16:00, items in stock are shipped the same working day. Free shipping within the Netherlands on orders from €45. Consumers have a 30-day reflection period.

Safe use

Magnets are not toys and should be kept out of the reach of children. Keep strong magnets away from pacemakers, electronics, and bank cards. Powerful magnets can snap together or against metal with force; keep your fingers away.
